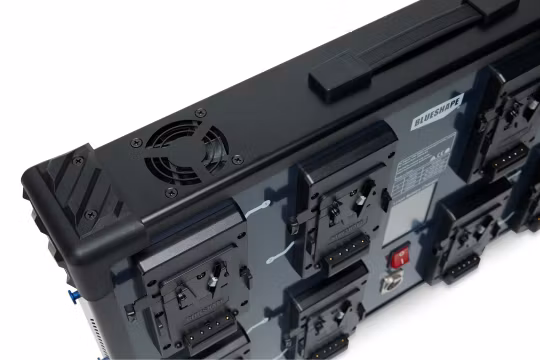

BLUESHAPE NEW Studio charger VLOCK batteries , WALL MOUNTING. Charges 8 batteries simultaneous. LCD info

BLUESHAPE NEW Studio charger VLOCK batteries , WALL MOUNTING. Charges 8 batteries simultaneous. LCD info

• Input: AC 100-240V 47-63Hz
• Output:
• 8x DC 16.8V 6A 100W/channel
• 1x AUX DC 14.4V (nominal) 110W max.
• Simultaneous charge: all the 8 batteries are charged in parallel for maximum performance
• Adaptive charge current: fast with large batteries, gentle with smaller
• Universal charger: can charge any brand of V-Lock batteries
• ON-OFF switchable fan for quiet operation

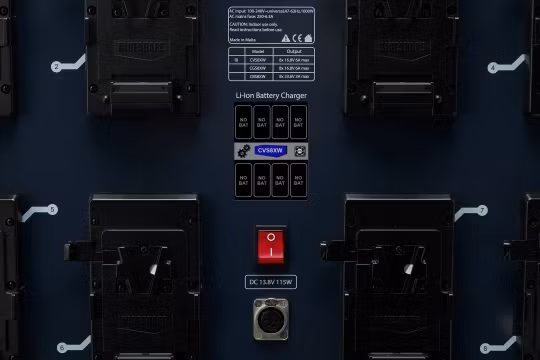

• 3.5" Large LCD touch screen for intuitive and detailed battery monitoring and diagnostic
• Data socket
• Provided with a bracket for easier wall installation either inside or in a production vehicle
• Size: 620 x 410 x 110 mm (24.40" x 16.14" x 4.33")
• Weight: 9.7Kg (21.44lbs)

Charging performance:

• BV095HDmini 95Wh: 2h 30m
• BV140HDmini 143Wh: 2h 30m
• BV090 95Wh: 2h 30m
• BV100HDplus 100Wh: 2h 30m
• BV150 150Wh: 2h 30m
• BV190HDplus 193Wh: 3h
• BV290HDplus 290Wh: 4h 20m
