SWIT Mino-S210 Pocket V-Mount Batteri

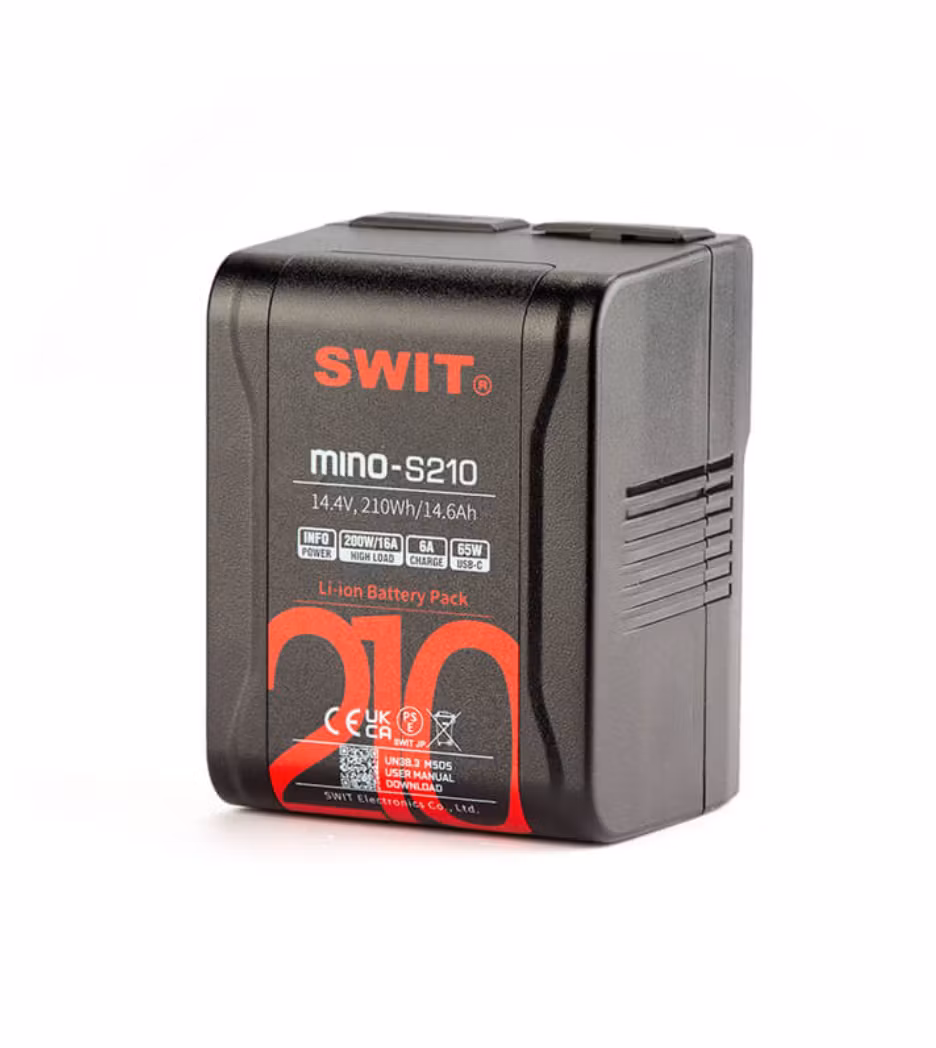

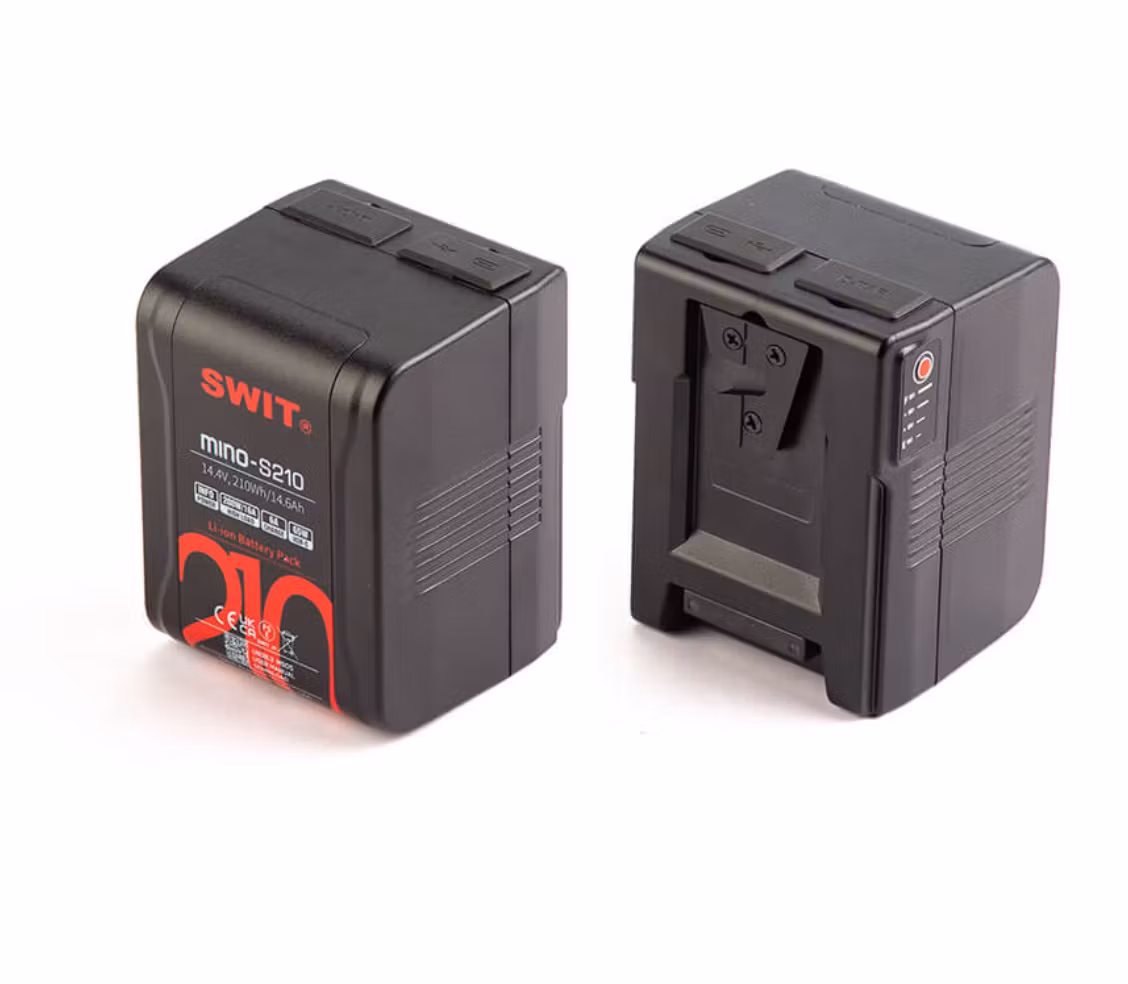

MINO-S210 210Wh Pocket V-mount Battery Pack

• Support RED V-Raptor install
• 210Wh/14.6Ah high capacity
• 200W/16A constant high load
• 100W/6A ultra fast charging
• Power info for both SONY & RED

MINO-S210 is a large capacity pocket fit size V-mount battery for cine range cameras, lights and various film gears. It fits RED V-raptor at the compact size and power the camera for at least 3 hours.

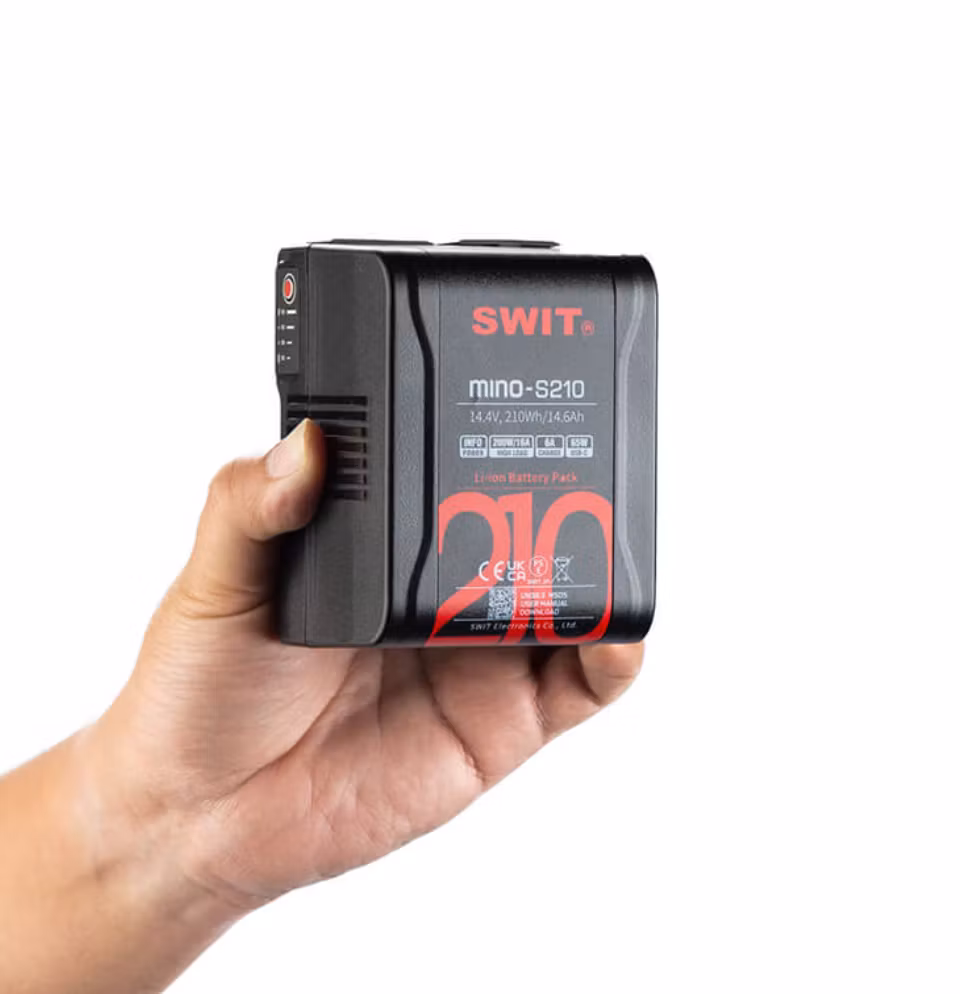

As a 210Wh large capacity battery, the MINO-S210 has 105x79.6x73.8mm compact size, and weights 1.02kg only. You can even carry it out with your pocket.

MINO-S210 consists of 12 high capacity cells, with 210Wh/14.6Ah high capacity, and support at least 200W/16A constant high load output, for high power cine cameras and lights.

The MINO-S210 provides various DC sockets:
D-tap x1 - 120W/10A load (Support charging input)
USB-A x1 - 5V/2A output
USB-C x1 - 65W output and 48W charging input

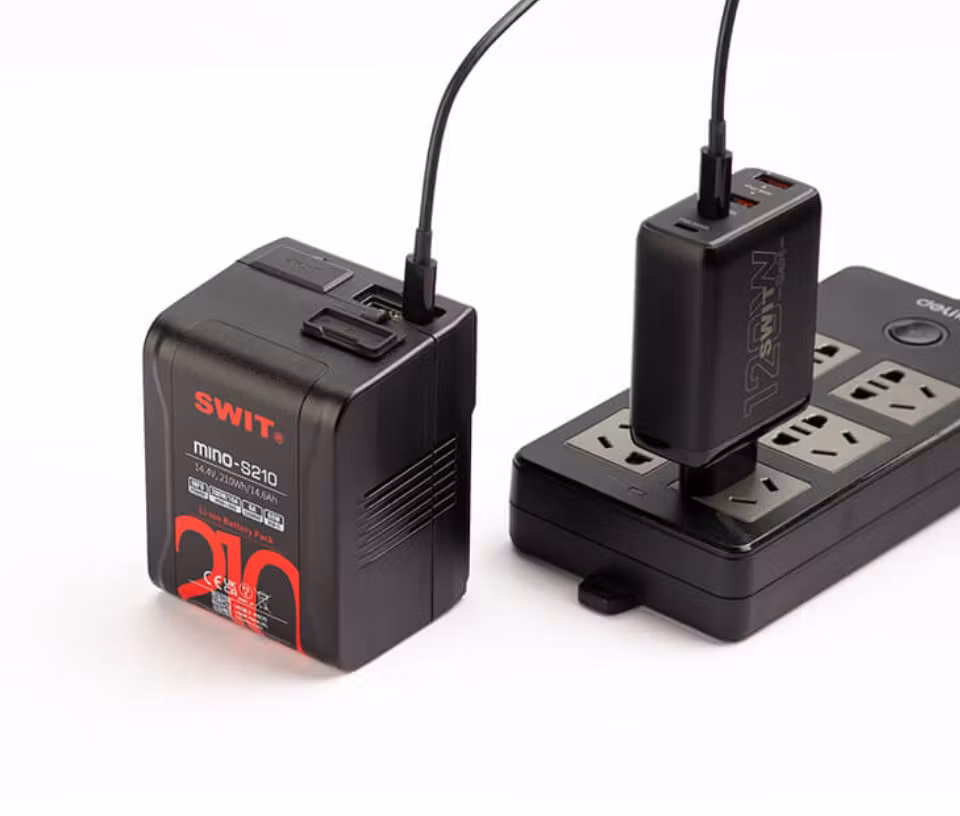

MINO-S70 battery can be charged by USB-C charger, supports PD 5V/9V/12V/15V/20V(Max) 2.4A, 48W charging input, which means you can fully charge the 210Wh battery within 5 hours.

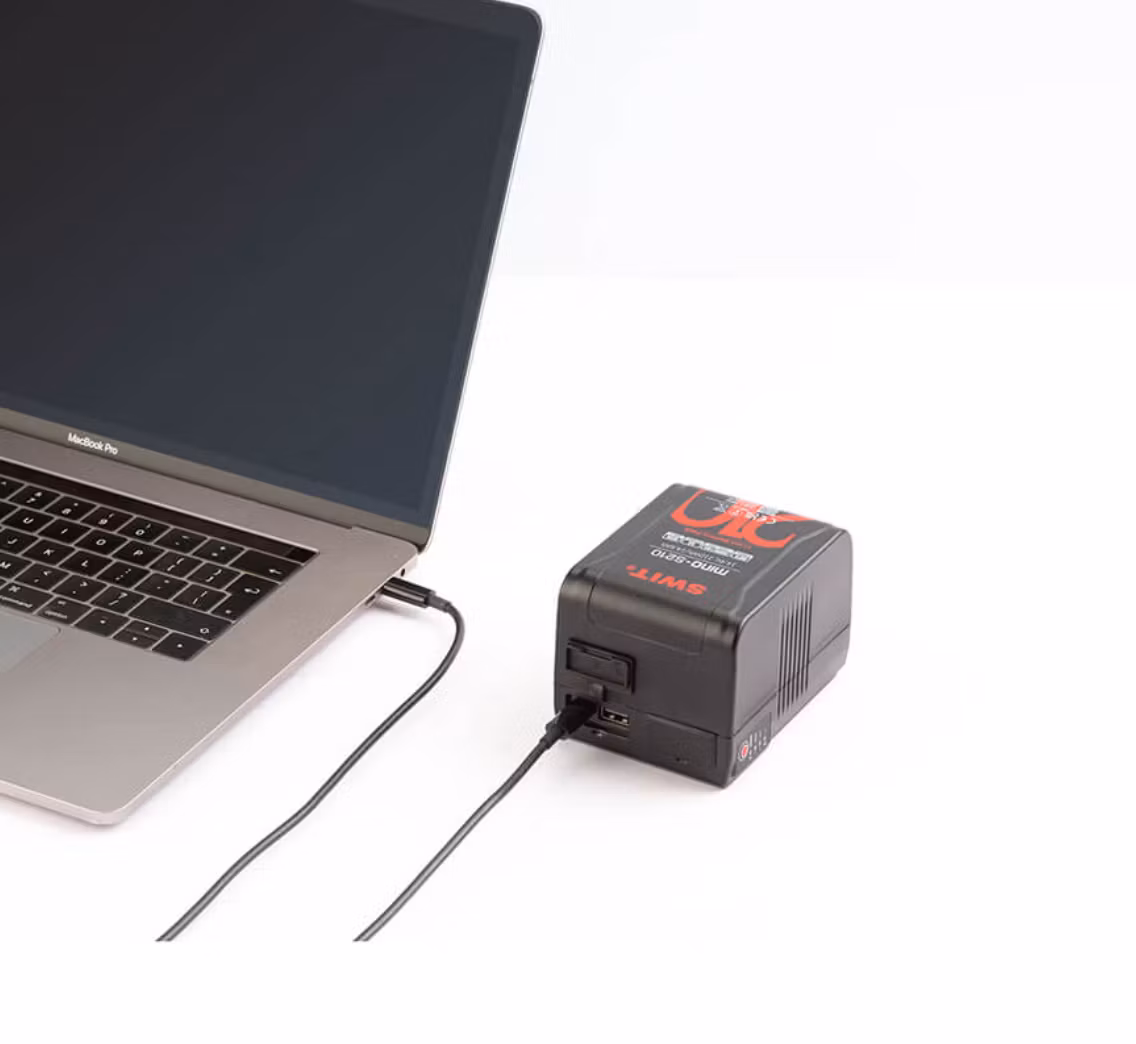

You can power laptop via USB-C by MINO-S210 battery on the filmset. Supports 5V 3.25A, 9V 3.25A, 12V 3.25A, 15V 3.25A and Max 20V 3.25A, BC1.2, PD2.0/3.0, QC2.0/3.0, FCP, SCP multiple protocols. (For Macbook Air/13, Macbook Pro 13/15/16, Huawei Matebook E/12/X13/XPRO, Thinkpad, HP, ASUS, Dell and almost all laptops with USB-C ports).

MINO-S210 has innovative “Wire-Free” internal technic. All the cells, D-tap, USB-A, USB-C, power indicator devices are directly soldered onto PCB, no connecting wires, to reduce internal resistance effectively, and make the circuit stable, safe, and reliable.
