Beijing Fiber Linker, 16x12G-SDI (+ ljud + Ethernet) via fiber

  • 139 000 kr

Ring eller maila för aktuell status.

Artikelnummer: 243
Dela

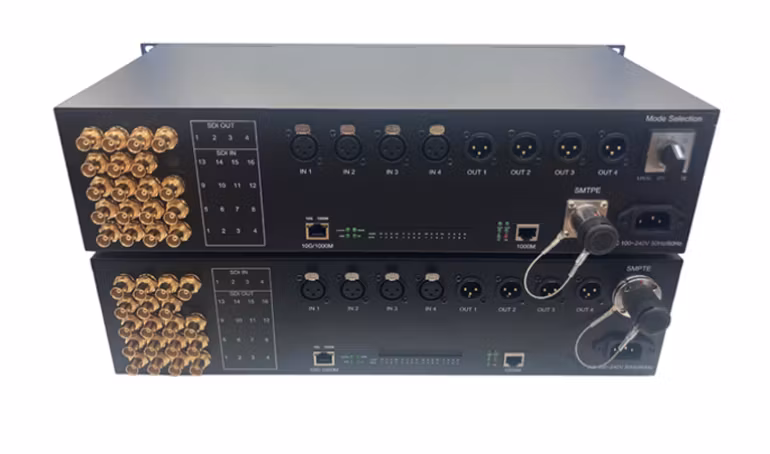

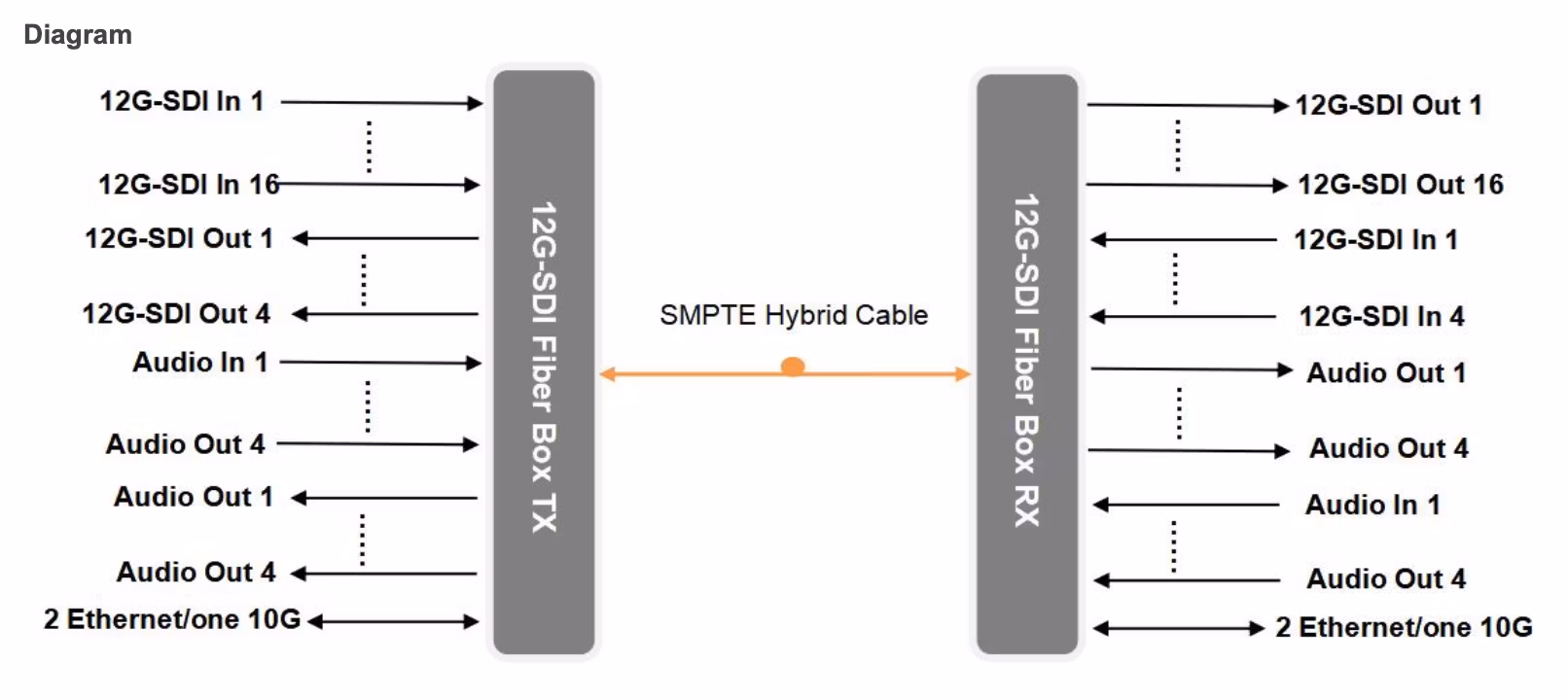

FLG164PSA: 16 forward and 4 reverse 12G SDI with 4-ch bidirectional XLR analog audio, one 10G Ethernet and one Gigabit Ethernet over SMPTE HDTV cable, 2.5U rack


  • Max 20 channels 12G-SDI
  • Support 10G Ethernet
  • Support 3K.93C SMPTE311M and SMPTE304M
  • Support FUW-PUW HDTV Hybrid Fiber cable
  • Category:4K 12G-SDI Fiber Optic Extender

Description

Beijing Fiber Linker has been in video audio transmission system solution for over 10 years. This 12G-SDI fiber converter support max 20 channels SDI with 10G bandwidth Ethernet and external line audio over SMPTE 311M and SMPTE304M type FXW and EDW connector so it could support remote power supply over FUW-PUW HDTV hybrid fiber cable. Our SDI fiber optic extender has been widely used in our domestic and overseas for broadcast TV transmission system. We could do SDI extender over fiber by CWDM, DWDM and TDM uncompressed solution with data, external audio Ethernet, tally and other functions. The fiber connectors could be ST, FC, SC, LC, SMPTE, LEMO type. We welcome any OEM request for SDI over fiber series.

Features

1.16-ch forward 12G-SDI and 4-ch reverse 12G-SDI
2.Support 1-ch Gigabit Ethernet, 1-ch 10G Ethernet
3.Support 4 forward and 4 reverse analog line audio
4.Compatible with 6G-SDI, 3G-SDI, HD-SDI, SD-SDI
5.Bandwidth range from 270Mb/s to 11.88Gb/s
6.SMPTE ST 2082-1 (11.88Gb/s) clock recovery
7.SMPTE 292M, 259M, 296M, 297M, 372M, 424M, 425M, ST-2081, ST-2082
8.Support automatic cable equalization based on the data rate detected
9.LED status indicators monitor the critical parameters
10.SMPTE304M/SMPTE311M FXW and EDW connector
11.Support remote power supply from EDW to FXW end
12.Support OEM configuration according to real needs
13.Optional CWDM or DWDM solution
Specifications

SDI Input

Number
16 input on TX box, 4 input on RX box
TV signal standard
SMPTE ST 2082, SMPTE ST 2081, SMPTE ST 424, SMPTE ST 425, SMPTE ST 292, SMPTE ST 259
Reflection loss
>4DB @12G
Equilibrium
>50M @ 12Gb/s
Connector
75Ω BNC

SDI Output

Number
16 output on RX box, 4 output on TX box
Signal level
800mV nominal
Rise/fall time
<135ps @3G-SDI ,<80ps @6G UHD-SDI
<45ps @12G UHD-SDI
Overshoot
<10% amplitude
Reflection loss
> 15dB
Jitter
< 0.5UI
Connector
75Ω BNC

Ethernet

RJ45 Connector
1-ch 1000M bandwidth and 1-ch 10G bandwidth

Audio

XLR connector
4-ch bidirectional analog balance audio

Fiber Optic

Connector
3K.93C FXW and EDW
Type/Distance
800meter with SMPTE hybrid fiber cable
Wavelength
CWDM
Pure Fiber Distance
10KM
Output Power
About +3 dB to -5dB
Fiber Loss
4 dB

Power and Environmental

Operating temperature
-40℃~+45℃
Power Supply
110 to 245VAC and remote power supply
Power Consumption
About 12W
EMI/RFI
FCC Part 15 Class A, EU EMC standard
MTBF
>100000 hours

Other

Size
2.5U rack mount
Weight
11Kg (TX+RX)
